Choosing the right mattress compressor can make or break your factory's profitability. The IF-Y2 Automatic Mattress Compressor and the IF-Y6 Full Automatic Compressor are two of Infinity Machinery's most popular compression machines, but they serve different production needs and budget levels. This guide breaks down exactly which machine delivers the best return on investment for your specific situation.
We will compare specifications, throughput rates, floor space requirements, labor costs, maintenance needs, and real-world ROI scenarios so you can make a confident purchasing decision.
| Feature | IF-Y2 | IF-Y6 |
| Type | Semi-Automatic | Full Automatic |
| Operators Required | 1-2 | 1 |
| Compression Force | Standard | High |
| Max Mattress Size | King (193x203cm) | King (193x203cm) |
| Compression Ratio | Up to 75% | Up to 80% |
| Cycle Time | ~45 sec | ~35 sec |
| Floor Space | ~3.5 x 2.5m | ~4.5 x 3m |
| Best For | Budget-conscious factories | High-volume operations |

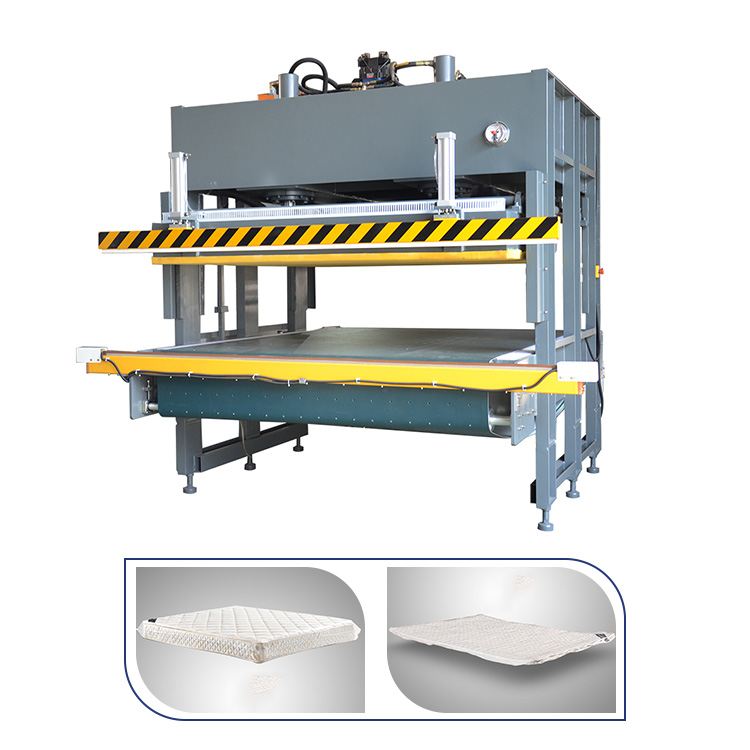

The IF-Y2 Automatic Mattress Compressor is designed for factories that need reliable compression without the premium price tag of a fully automatic system. It delivers solid performance with a straightforward operation that requires minimal training.
The IF-Y2 uses a hydraulic compression system to flatten mattresses to approximately 25% of their original thickness. The operator positions the mattress on the compression platform, activates the hydraulic press, and the machine compresses the mattress to the preset thickness. Once compressed, the mattress is wrapped in protective film and ejected for packing or rolling.
The semi-automatic design means the operator handles mattress positioning and removal, while the compression and wrapping cycles are automated. This keeps the machine simple, reliable, and affordable while still delivering professional-grade compression results.
| Model | IF-Y2 |
| Type | Semi-Automatic Mattress Compressor |
| Max Mattress Size | 1930 x 2030mm (King) |
| Compression Thickness | 25-40mm adjustable |
| Compression Ratio | Up to 75% |
| Power | 5.5KW |
| Voltage | 380V/50Hz 3-phase |
| Operators | 1-2 |
| Floor Space | ~3.5 x 2.5 meters |
The IF-Y2 is perfect for factories that:

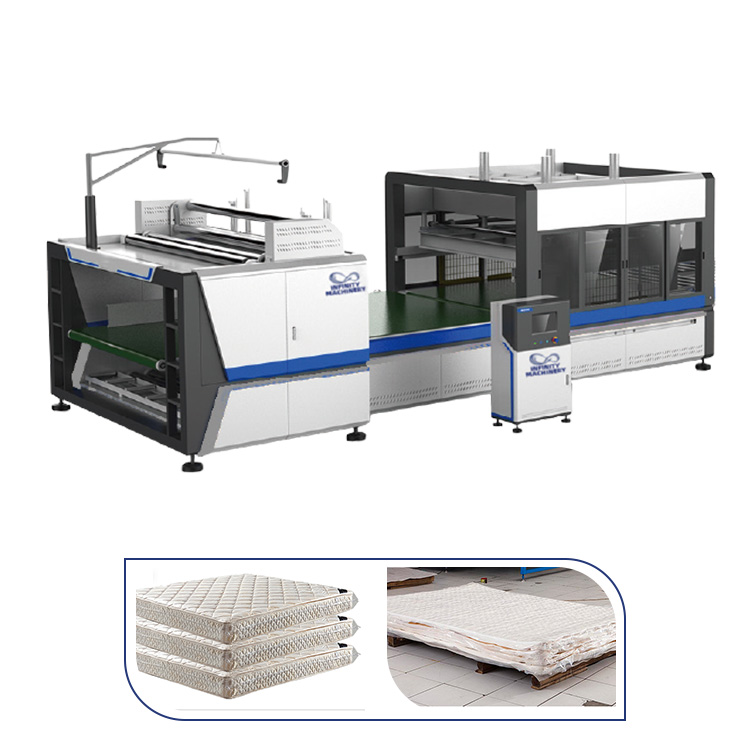

The IF-Y6 Full Automatic Compressor is built for factories that demand maximum throughput with minimal labor. Its fully automated operation handles the entire compression, wrapping, and ejection cycle with a single operator.
The IF-Y6 takes automation to the next level. The operator loads the mattress onto the feeding platform, and the machine takes over completely. An automated conveyor positions the mattress, the hydraulic system compresses it to the programmed thickness, the wrapping mechanism applies protective film, and the finished compressed mattress is ejected onto the output conveyor.
The PLC control system allows operators to store multiple compression programs for different mattress types and thicknesses. Switching between programs takes seconds, making the IF-Y6 highly versatile for factories producing diverse mattress lines.
| Model | IF-Y6 |
| Type | Full Automatic Compressor |
| Max Mattress Size | 1930 x 2030mm (King) |
| Compression Thickness | 20-40mm adjustable |
| Compression Ratio | Up to 80% |
| Power | 7.5KW |
| Voltage | 380V/50Hz 3-phase |
| Operators | 1 |
| Floor Space | ~4.5 x 3 meters |
The IF-Y6 is the right choice for factories that:
Winner: IF-Y6. The IF-Y6's fully automated cycle completes in approximately 35 seconds, compared to 45 seconds for the IF-Y2. Over an 8-hour shift, this 10-second difference adds up to roughly 80 additional mattresses processed per day. For high-volume factories, this throughput advantage translates directly to revenue.
Winner: IF-Y6. The IF-Y6 requires only 1 operator who mainly loads mattresses and monitors the process. The IF-Y2 needs 1-2 operators for positioning and removal. Over a year, this labor difference can save $12,000-18,000 in wages.
Winner: IF-Y6. The IF-Y6 achieves up to 80% compression ratio compared to 75% for the IF-Y2. This means smaller final package sizes and lower shipping costs per unit. The PLC-controlled pressure ensures consistent compression across all mattresses.
Winner: IF-Y2. The IF-Y2's simpler design means faster operator training (1-2 days vs 3-5 days for IF-Y6). The straightforward controls are intuitive for workers with basic mechanical skills. Maintenance is also simpler with fewer electronic components.
Winner: IF-Y2. At approximately 3.5 x 2.5 meters, the IF-Y2 needs about 30% less floor space than the IF-Y6 (4.5 x 3 meters). For factories with limited floor space, this can be a deciding factor.
Winner: IF-Y2. The IF-Y2's simpler mechanical design means fewer things that can break. Routine maintenance involves checking hydraulic fluid, lubricating moving parts, and inspecting the compression plate. The IF-Y6 requires additional PLC system maintenance and more frequent sensor calibration.
Winner: IF-Y2. The IF-Y2 is significantly more affordable than the IF-Y6. The price difference typically ranges from $3,000-5,000, making the IF-Y2 the clear choice for budget-conscious factories. However, the IF-Y6's higher throughput and lower labor costs can offset this premium within 12-18 months.
A mid-size factory producing 150 mattresses daily:
A large factory producing 300 mattresses daily:
Mattress compression is the process of using hydraulic pressure to flatten a mattress to a fraction of its original thickness. This dramatically reduces shipping volume, cutting freight costs by 65-80% per unit. Both the IF-Y2 and IF-Y6 use hydraulic compression systems, but their implementations differ significantly.
The IF-Y2 uses a single-stage hydraulic system with manual pressure adjustment. The operator sets the desired compression thickness using a physical dial, and the hydraulic press applies consistent pressure to achieve that thickness. This system is proven and reliable, with fewer electronic components that could fail.
The IF-Y6 employs a dual-stage hydraulic system with PLC-controlled pressure regulation. The first stage applies rapid initial compression, while the second stage applies fine-tuned pressure to reach the exact target thickness. This dual-stage approach produces more consistent results, especially when compressing mattresses with varying internal structures.
Both machines include integrated film wrapping systems that protect compressed mattresses during storage and shipping. The IF-Y2 uses a manual film positioning system where the operator aligns the film before compression. The IF-Y6 features an automatic film feeding and cutting system that precisely positions and wraps the film without operator intervention.
The film wrapping on both machines uses standard PE film rolls (500-800mm width), which are widely available and affordable. Film consumption is approximately 2-3 meters per mattress for both machines.
The primary benefit of mattress compression is shipping cost reduction. Here is a detailed analysis based on typical shipping scenarios:
| Metric | Flat Mattress | IF-Y2 Compressed | IF-Y6 Compressed |
| Queen mattress volume | 0.35 m³ | 0.09 m³ | 0.07 m³ |
| Units per 40ft container | ~180 | ~680 | ~820 |
| Freight cost per unit (sea freight) | $45 | $12 | $10 |
| Monthly savings (200 units/day) | - | $198,000 | $210,000 |
These numbers are based on ocean freight rates of approximately $2,500 per 40ft container from major Asian ports. Actual savings will vary based on shipping routes, distances, and current freight rates, but the compression advantage is consistent across all scenarios.
For domestic shipping, the benefits are equally dramatic. A standard 13.5-meter truck can carry approximately 45 flat queen mattresses but over 150 IF-Y2 compressed mattresses or 180 IF-Y6 compressed mattresses. This means fewer trucks, lower fuel costs, and reduced carbon emissions per unit shipped.
For a factory shipping 200 mattresses daily across a 500km radius, switching from flat to IF-Y2 compression reduces daily truck trips from 4.4 to 1.5, saving approximately $800 per day in domestic freight costs.
| Maintenance Aspect | IF-Y2 | IF-Y6 |
| Hydraulic fluid change | Every 2000 hours | Every 1500 hours |
| Blade/plate inspection | Weekly | Weekly |
| Sensor calibration | Not required | Monthly |
| PLC system check | N/A | Quarterly |
| Annual maintenance cost | ~$800 | ~$1,200 |
| Average uptime | 97% | 95% |
| Expected service life | 15+ years | 12+ years |
The IF-Y2's mechanical simplicity translates to higher uptime and lower maintenance costs. However, the IF-Y6's PLC system provides diagnostic capabilities that can predict failures before they occur, potentially reducing unplanned downtime in high-volume operations.
A mattress factory in Medellin producing 120 units daily installed the IF-Y2 to replace manual packing. Results after 6 months:
A large mattress manufacturer in Monterrey producing 350 units daily deployed the IF-Y6. Results after 8 months:
Both the IF-Y2 and IF-Y6 can be integrated into existing production lines in several configurations:
Position the compressor at the end of your production line. Finished mattresses are moved to the compression station manually or via conveyor. This is the simplest setup and works well for factories with moderate production volumes.
Connect the compressor directly after the tape edge machine using a short conveyor. Mattresses move from finishing to compression without manual handling. This configuration is common in factories producing 150-300 units daily.
For maximum automation, integrate the compressor with a box packing system. The IF-Y6 works particularly well in this configuration, as its PLC can coordinate with downstream packaging equipment for fully automated mattress-to-box production.
A: No. Both machines are designed to compress mattresses safely within their structural limits. The compression ratio is adjustable, allowing you to find the optimal balance between volume reduction and mattress integrity. High-quality pocket spring and foam mattresses recover to their original shape within 24-48 hours after unboxing.
A: Both machines handle innerspring, pocket spring, foam, memory foam, latex, and hybrid mattresses. The IF-Y2 is particularly well-suited for standard foam and spring mattresses, while the IF-Y6's adjustable pressure settings make it ideal for premium mattresses that require more careful compression.
A: Mattresses can remain compressed for 6-12 months without permanent deformation, provided they are stored in a cool, dry environment. Most manufacturers recommend selling compressed mattresses within 3 months for optimal quality.
A: The IF-Y2 requires 1-2 days of basic operation training. The IF-Y6 requires 3-5 days including PLC programming and recipe management. Infinity Machinery provides comprehensive training with both machine purchases.
A: Both machines come with a 12-month warranty covering parts and labor. Extended warranty options are available. Infinity Machinery also provides lifetime technical support via phone and video call.
A: Yes, Infinity Machinery offers video demonstrations and can arrange factory visits to existing customer sites. Contact our sales team to schedule a demo at your convenience.
Understanding the ongoing operating costs helps you calculate the true total cost of ownership for each machine.
| Operating Cost | IF-Y2 (Monthly) | IF-Y6 (Monthly) |
| Electricity (8hr shift) | $120 | $165 |
| Film consumption | $180 | $180 |
| Hydraulic fluid | $25 | $35 |
| Maintenance labor | $65 | $100 |
| Compressed air | $40 | $55 |
| Total Monthly Operating Cost | $430 | $535 |
The IF-Y6 costs approximately $105 more per month to operate, but this is offset by its higher throughput and the savings from requiring one fewer operator. When you factor in the labor savings, the IF-Y6 actually has lower total operating costs in high-volume scenarios.
To make an informed decision, consider the total cost over a 5-year period:
| Cost Category | IF-Y2 (5yr) | IF-Y6 (5yr) |
| Purchase price | $8,000 | $12,000 |
| Operating costs | $25,800 | $32,100 |
| Maintenance | $4,000 | $6,000 |
| Labor (5yr) | $90,000 | $72,000 |
| Freight savings (5yr) | -$1,188,000 | -$1,260,000 |
| Net 5-Year Benefit | $1,070,200 | $1,139,900 |
Both machines deliver extraordinary returns over 5 years. The IF-Y6 provides approximately $70,000 more in net benefits due to its higher compression ratio and labor savings, despite its higher initial cost. However, if your budget is tight upfront, the IF-Y2 still delivers over $1 million in savings over 5 years.
Both machines are designed with operator safety as a top priority. Here is a comparison of their safety features:
The IF-Y6 offers more advanced safety features due to its PLC-controlled operation, but both machines provide excellent operator protection when used according to manufacturer guidelines.
Both machines can be customized to match your specific production requirements:
All customization options can be ordered at purchase or added later as factory needs evolve. Infinity Machinery's engineering team works with customers to design custom solutions for unique production requirements.
Both the IF-Y2 and IF-Y6 are excellent mattress compressors that deliver substantial shipping cost savings. The IF-Y2 is the smart choice for budget-conscious factories that need reliable compression with simple operation. The IF-Y6 is the premium choice for high-volume operations that demand maximum throughput, precision, and automation.
The key decision factor is your daily production volume. If you produce under 200 mattresses per day, the IF-Y2 provides the best value. If you produce over 200 per day, the IF-Y6's higher throughput and labor savings will deliver superior returns despite its higher initial cost.
Infinity Machinery has been a leading manufacturer of mattress machinery for over 15 years, serving customers in more than 80 countries. When you choose the IF-Y2 or IF-Y6, you benefit from:
Whether you choose the IF-Y2 for its simplicity and affordability or the IF-Y6 for its performance and automation, you are investing in proven technology backed by a company that stands behind its products.
