Choosing the wrong mattress rolling machine can cost your factory thousands in wasted material, slow production, and expensive upgrades. The IF-CR5 Mattress Rolling Machine and the IF-CR2 Roll Packing Machine are two of Infinity Machinery's most popular rolling solutions, but they serve different production needs and budget levels.
This guide breaks down exactly which machine delivers the best return on investment for your specific situation, covering specifications, throughput rates, floor space requirements, and real-world ROI scenarios.
| Feature | IF-CR5 | IF-CR2 |
| Type | Standalone Roller | Roll Packing Machine |
| Compression | No (rolling only) | Yes (compress + roll) |
| Operators Required | 1 | 1-2 |
| Roll Diameter | 300-600mm | 300-600mm |
| Cycle Time | ~60 sec | ~50 sec |
| Floor Space | ~3 x 2m | ~5 x 3m |
| Best For | Budget rolling without compression | Full compress-and-roll solution |

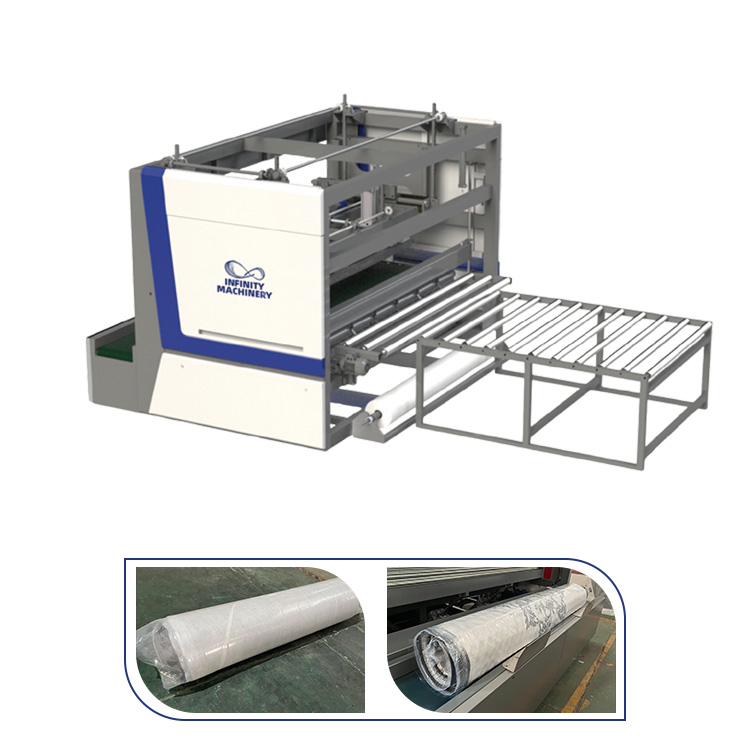

The IF-CR5 Mattress Rolling Machine is designed for one purpose: rolling mattresses into compact cylinders for efficient shipping. It does not include compression, making it simpler, more affordable, and easier to maintain than full compress-and-roll systems.
The IF-CR5 uses a hydraulic-assisted rolling mechanism combined with a motorized film wrapping system. The operator places a mattress on the feeding platform, and the machine rolls it from one end to the other, wrapping it in protective film during the process. The entire cycle takes approximately 60 seconds.
The rolling diameter is adjustable between 300mm and 600mm, giving you control over the final roll size. The motorized rollers apply consistent pressure throughout the roll, ensuring a tight, uniform cylinder every time. No compression is applied, so the mattress maintains its full thickness in the rolled state.
| Model | IF-CR5 |
| Type | Standalone Mattress Rolling Machine |
| Max Mattress Width | 1800mm |
| Roll Diameter Range | 300-600mm adjustable |
| Compression | None (rolling only) |
| Power | 3KW |
| Operators | 1 |
| Floor Space | ~3 x 2 meters |
The IF-CR2 Roll Packing Machine combines compression and rolling into one seamless operation. It compresses the mattress first, then rolls it into a tight cylinder, producing the smallest possible package for shipping.
The IF-CR2 uses a two-stage process: first, a hydraulic compression system flattens the mattress to approximately 25-30% of its original thickness. Then, the compressed mattress is automatically rolled and wrapped in protective film. The entire process takes about 50 seconds and produces a compact, tightly rolled package ready for boxing.
The integrated compression system is the key differentiator. By compressing before rolling, the IF-CR2 produces rolls that are significantly smaller than non-compressed rolls. This translates directly to more units per container, lower freight costs, and reduced warehousing requirements.
| Model | IF-CR2 |
| Type | Roll Packing Machine (Compress + Roll) |
| Max Mattress Size | 1930 x 2030mm (King) |
| Roll Diameter Range | 300-600mm adjustable |
| Compression | Yes (up to 75%) |
| Power | 5.5KW |
| Operators | 1-2 |
| Floor Space | ~5 x 3 meters |
Winner: IF-CR2. The IF-CR2 compresses the mattress before rolling, achieving up to 75% volume reduction. The IF-CR5 only rolls without compression, reducing volume by approximately 40-50%. For international shipping, this difference is enormous.
Winner: IF-CR5. Since the IF-CR5 does not compress, it preserves the mattress structure completely. Premium mattresses with delicate comfort layers, pillow tops, or specialty foams benefit from rolling without compression, as there is zero risk of permanent deformation.
Winner: IF-CR2. The IF-CR2's integrated compress-and-roll cycle completes in about 50 seconds, compared to 60 seconds for the IF-CR5. Over an 8-hour shift, this translates to roughly 20 additional mattresses processed.
Winner: IF-CR5. The IF-CR5's simpler design means faster training (1 day vs 2-3 days) and easier troubleshooting. There are fewer components that can fail, and maintenance is straightforward.
Winner: IF-CR5. At approximately 3 x 2 meters, the IF-CR5 needs about 60% less floor space than the IF-CR2 (5 x 3 meters). For factories with limited space, this is a significant advantage.
Winner: IF-CR5. The IF-CR5 has no hydraulic compression system, meaning fewer moving parts and lower maintenance costs. Annual maintenance: ~$600 vs ~$1,000 for the IF-CR2.
Winner: IF-CR5. The IF-CR5 is significantly more affordable. The price difference typically ranges from $3,000-5,000. However, the IF-CR2's superior volume reduction can offset this premium within 6-12 months through freight savings.
A mid-size factory producing 150 foam mattresses daily:
A large factory producing 300 spring mattresses daily:
The primary difference between these machines is how much they reduce shipping volume. Here is a detailed comparison:
| Metric | Flat | IF-CR5 Rolled | IF-CR2 Rolled |
| Queen mattress volume | 0.35 m³ | 0.19 m³ | 0.09 m³ |
| Units per 40ft container | ~180 | ~340 | ~680 |
| Freight cost per unit | $45 | $24 | $12 |
| Volume reduction | - | 45% | 75% |
The IF-CR2's compression advantage becomes more pronounced for international shipping where container space directly impacts costs. For domestic trucking, the IF-CR5's rolling reduction is still significant but the IF-CR2 provides even greater savings.
| Aspect | IF-CR5 | IF-CR2 |
| Hydraulic system | Simple assist only | Full compression system |
| Annual maintenance cost | ~$600 | ~$1,000 |
| Average uptime | 98% | 96% |
| Expected service life | 15+ years | 12+ years |
| Training time | 1 day | 2-3 days |
The IF-CR5 wraps the mattress around a central axis, creating a cylindrical roll while maintaining full mattress thickness. Volume reduction comes from the cylindrical shape being more efficient for shipping than flat rectangles. The IF-CR2 adds hydraulic compression before rolling, producing dramatically smaller rolls that fit into much smaller boxes.
The IF-CR5's rolled mattress retains 200-300mm thickness, while the IF-CR2's compressed roll is only 80-120mm thick. This 60-70% difference in final thickness directly impacts how many units fit in a shipping container, making the IF-CR2 significantly more cost-effective for international shipping.
For domestic trucking, both machines provide meaningful volume reduction, but the IF-CR2 still offers roughly 40% more space savings than the IF-CR5 due to its compression capability.
| Cost Category | IF-CR5 (Monthly) | IF-CR2 (Monthly) |
| Electricity | $65 | $120 |
| Film consumption | $150 | $180 |
| Maintenance | $65 | $120 |
| Total Monthly | $280 | $420 |
The IF-CR5 has lower operating costs, but the IF-CR2's superior volume reduction delivers far greater freight savings that outweigh the higher operating expenses.
| Specification | IF-CR5 | IF-CR2 |
| Machine Type | Standalone Roller | Roll Packing (Compress+Roll) |
| Max Mattress Size | 1800mm width | 1930×2030mm (King) |
| Roll Diameter | 300-600mm | 300-600mm |
| Compression | None | Up to 75% |
| Motor Power | 3KW | 5.5KW |
| Voltage | 380V/50Hz | 380V/50Hz |
| Cycle Time | ~60 sec | ~50 sec |
| Operators | 1 | 1-2 |
| Floor Space | ~3×2m (6 sqm) | ~5×3m (15 sqm) |
| Machine Weight | ~800 kg | ~1500 kg |
| Film Roll Width | 500-800mm | 500-800mm |
| Noise Level | ≤70 dB | ≤75 dB |
| Cost Category | IF-CR5 (5yr) | IF-CR2 (5yr) |
| Purchase price | $5,000 | $9,000 |
| Operating costs | $16,800 | $25,200 |
| Maintenance | $3,000 | $5,000 |
| Labor (5yr) | $45,000 | $54,000 |
| Freight savings (5yr) | -$576,000 | -$1,140,000 |
| Net 5-Year Benefit | $506,200 | $1,046,800 |
The IF-CR2 delivers roughly double the 5-year benefit of the IF-CR5 due to its superior compression capability. However, the IF-CR5 still delivers over half a million dollars in net benefits, making it an excellent investment for budget-conscious factories.
A: No, the IF-CR5 is a rolling-only machine. It wraps mattresses into cylinders without compression. If you need compression, consider the IF-CR2 or add a separate compressor like the IF-Y2 upstream.
A: Both machines handle all mattress types. The IF-CR5 is ideal for foam mattresses that don't benefit from compression. The IF-CR2 excels with spring and pocket spring mattresses where compression provides maximum volume reduction.
A: The IF-CR5 needs approximately 6 square meters. The IF-CR2 needs approximately 15 square meters. Both machines need additional space for material staging.
A: The IF-CR5 requires 1 day of basic training. The IF-CR2 requires 2-3 days including compression system operation. Both machines come with comprehensive training from Infinity Machinery.
A: Yes, Infinity Machinery offers video demonstrations and can arrange factory visits to existing customer sites. Contact our sales team to schedule a demo at your convenience.
A: Both machines come with a 12-month warranty covering parts and labor. Extended warranty options are available for 24 or 36 months. Infinity Machinery also provides lifetime technical support via phone and video call.
Both machines can be customized at purchase or upgraded later. Infinity Machinery's engineering team works with customers on custom configurations.
Infinity Machinery has been a leading manufacturer of mattress machinery for over 15 years, serving customers in more than 80 countries. When you choose the IF-CR5 or IF-CR2, you benefit from proven technology backed by a company that stands behind its products.
A factory producing 150 foam mattresses daily for domestic distribution. The mattresses are soft foam that does not benefit from compression. Trucks carry mattresses to regional warehouses within 500km radius.
Recommendation: IF-CR5. The rolling-only approach is sufficient for domestic trucking, the lower investment pays back faster, and the simpler operation means less training and maintenance. The 45% volume reduction from rolling provides meaningful freight savings without the complexity of compression.
A factory producing 400 spring mattresses daily for export to Europe and North America via ocean freight. Container space is the primary cost driver, and every cubic meter saved translates directly to profit.
Recommendation: IF-CR2. The compress-and-roll capability provides 75% volume reduction, nearly doubling container capacity from 180 to 680 units. The $32,000 monthly freight savings dwarf the $4,000 price premium over the IF-CR5.
A luxury brand producing 100 premium hybrid mattresses daily with delicate pillow tops and memory foam layers. Product integrity during packaging is critical to maintaining brand reputation.
Recommendation: IF-CR5. The compression-free rolling preserves all mattress components in their original state. Premium customers expect perfect condition, and the IF-CR5 delivers zero-risk packaging that maintains the mattress exactly as designed.
A new factory starting with 50-100 mattresses daily, limited budget, and small floor space. Planning to scale up production over the next 2-3 years.
Recommendation: Start with IF-CR5, upgrade later. The IF-CR5's low investment and simple operation make it perfect for getting started. As production scales, the factory can add a compressor like the IF-Y2 for occasional compressed rolls, or upgrade to the IF-CR2 when volume justifies the investment.
Both the IF-CR5 and IF-CR2 contribute to environmental sustainability through shipping efficiency. Here is how rolling reduces environmental impact:
The IF-CR2 provides greater environmental benefits due to its higher compression ratio, but even the IF-CR5's rolling-only approach significantly reduces the environmental impact compared to shipping flat mattresses.
The IF-CR5 and IF-CR2 are both excellent rolling machines that deliver substantial and measurable shipping cost savings for mattress factories of all sizes. The IF-CR5 is the smart choice for budget-conscious factories that need rolling without compression, while the IF-CR2 is the premium choice for operations that demand maximum volume reduction.
The key decision factors are your shipping method (domestic vs international), mattress type (foam vs spring), and daily production volume. For domestic foam mattress shipping, the IF-CR5 provides excellent value. For international spring mattress export, the IF-CR2's compression capability delivers transformative freight savings.
Both machines pay for themselves within months and continue generating substantial savings for many years to come. Contact Infinity Machinery today to discuss your specific needs and receive a customized recommendation from our expert engineering team today!
Infinity Machinery has been a leading manufacturer of mattress machinery for over 15 years, serving customers in more than 80 countries. When you choose the IF-CR5 or IF-CR2, you benefit from proven technology backed by a company that stands behind its products.
Whether you choose the IF-CR5 for its simplicity or the IF-CR2 for its compression power, both machines will transform your shipping operations. Contact us today for a free consultation, custom configuration advice, and a detailed quote tailored to your factory's specific needs.
